Heavy Duty Patterned Conveyor Belt for Mining and Industry

Heavy Duty Patterned Conveyor Belt for Mining and Industry

Brand Name:	JM Belt
MOQ:	20 M
Price:	Depends on customer’s actual situation
Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability:	7,000-8,000 Meters per day

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Supply Ability:

7,000-8,000 Meters per day

Highlight:

heavy duty patterned conveyor belt

mining conveyor belt with pattern

industrial patterned conveyor belt

Product Description

High-Quality Heavy Duty Conveyor Belt for Industrial Material Handling

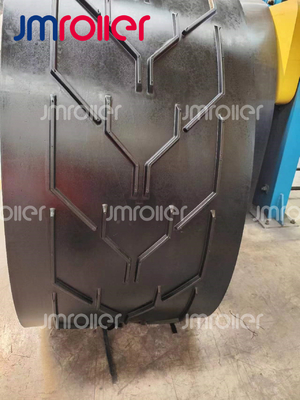

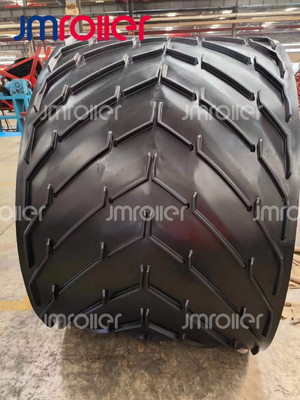

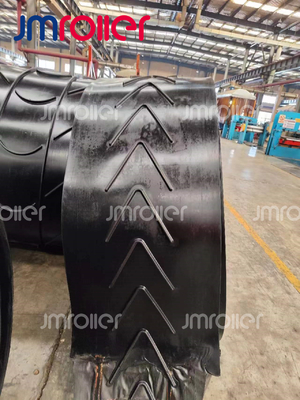

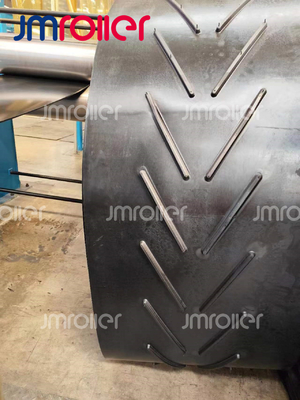

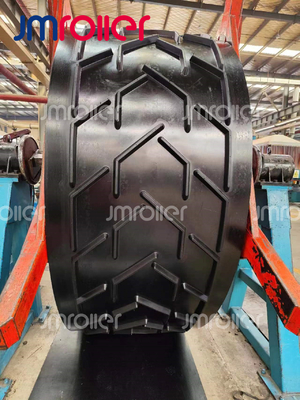

The Patterned Conveyor Belt is a high-strength rubber conveyor belt with raised surface patterns designed to prevent material slippage and enhance transportation efficiency. Constructed from durable industrial rubber, this belt excels in outdoor mining and heavy industry applications.

Key Features

Anti-Slip Surface: Raised patterns ensure secure material transport even on steep inclines (20°-40°) and wet/oily surfaces
Exceptional Durability: High-strength rubber construction resists abrasion, impact, and cuts from sharp materials
Temperature Resistant: Stable performance from -60°C to 120°C, with special compounds available for extreme heat (up to 600°C)
Reinforced Structure: Multi-ply fabric carcass (EP/NN) provides high tensile strength and minimal stretching
Customizable Design: Various pattern types and heights available to optimize material handling

Technical Specifications

Parameter	Specification Range
Belt Width	300mm - 2600mm (custom sizes available)
Belt Thickness	6mm - 25mm (excluding pattern height)
Ply Layers	2 - 6 plies (higher layers available)
Tensile Strength	EP100, EP125, EP150, EP200, EP300, EP350, EP400, EP500, etc.
Operating Temperature	-60°C - 60°C (standard), up to 600°C (special compounds)

Note: All specifications are customizable based on your specific requirements.

Industrial Applications

Mining & Quarrying: Transporting coal, ores, and aggregates with superior abrasion resistance
Heavy Industry: Steel mills, cement plants, and power plants handling coke, clinker, and slag
Construction: Concrete mixing plants and construction sites moving sand, gravel, and debris
Ports & Terminals: Grain, fertilizer, and mineral transportation with stable incline performance
Other Industries: Agriculture, recycling, and warehousing applications

Customization Options

Dimensions: Widths from 300mm to 2600mm with adjustable thickness
Strength: 2-6+ fabric layers with various tensile strengths (EP100-EP500+)
Patterns: Chevron, herringbone, ribbed, or custom designs
Materials: Heat-resistant, oil-resistant, flame-retardant, or cold-resistant compounds
Edge & Joint: Multiple splicing methods (cold bonding, hot vulcanization, mechanical)
